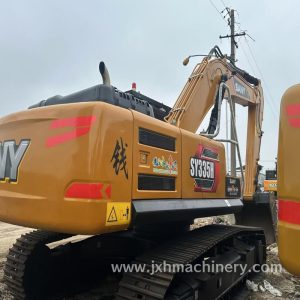

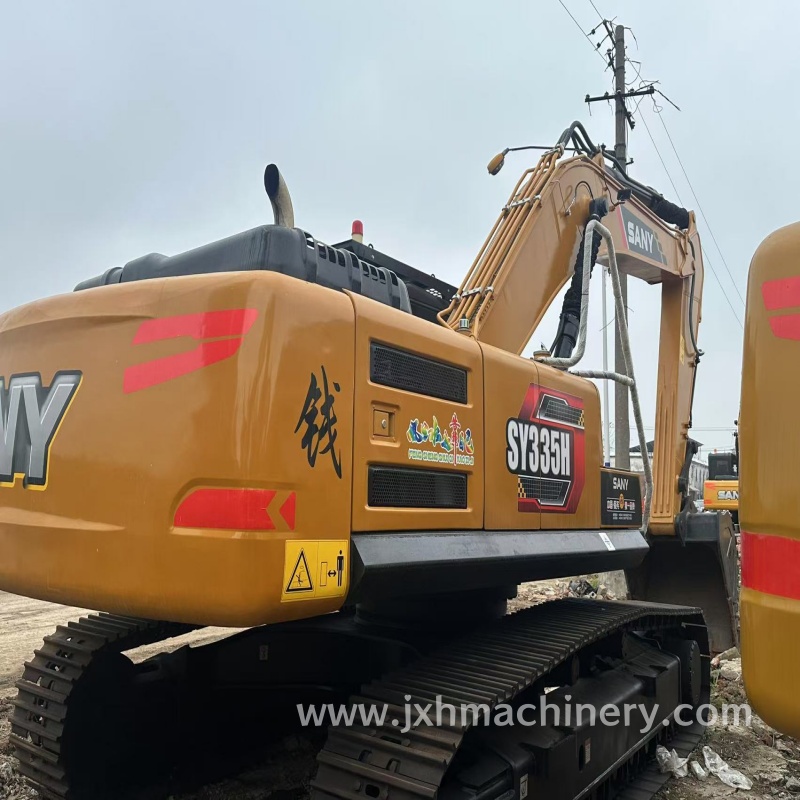

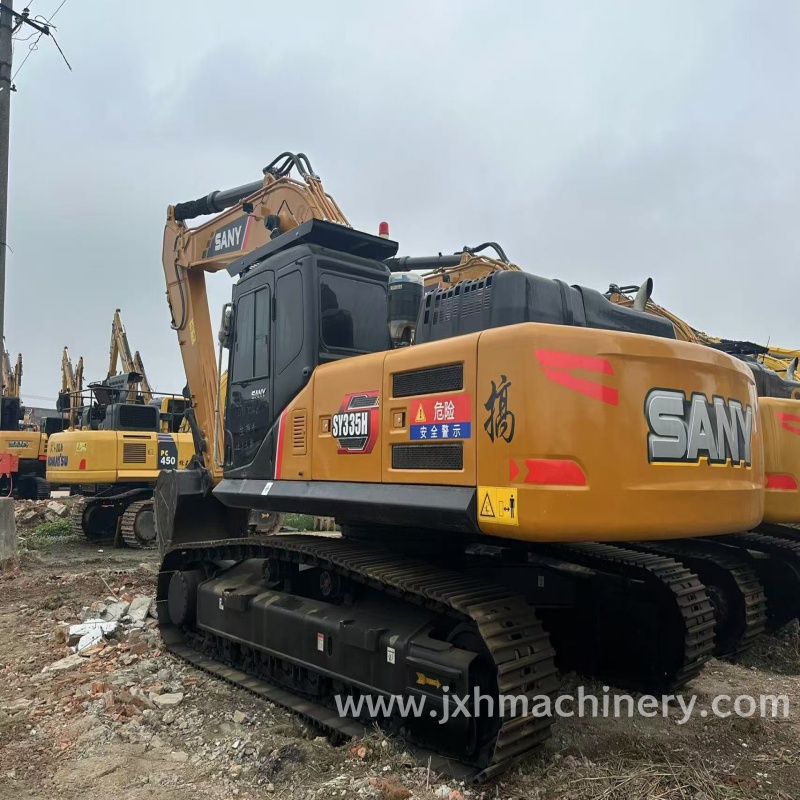

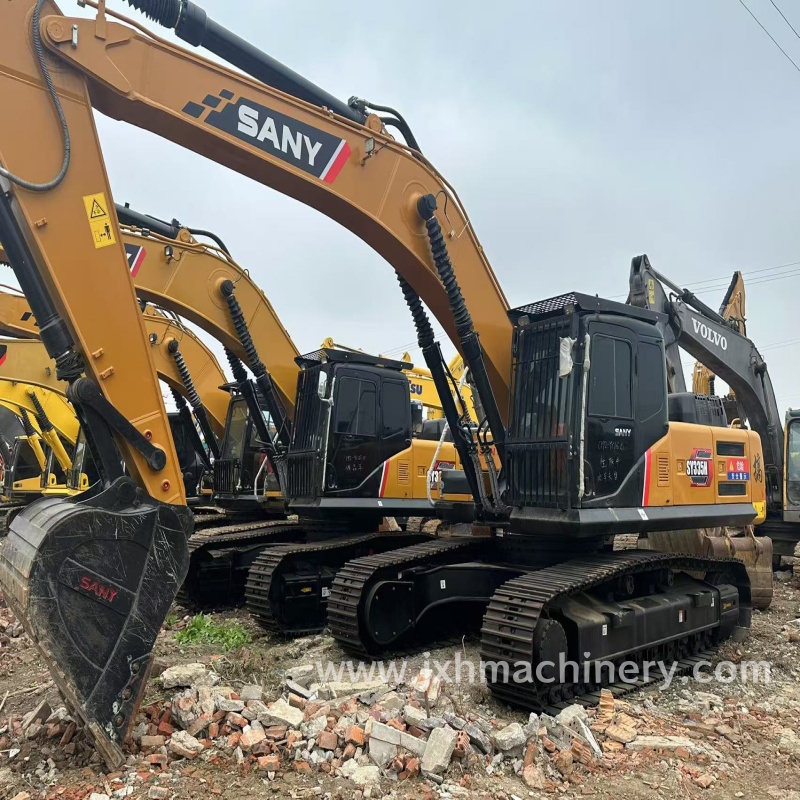

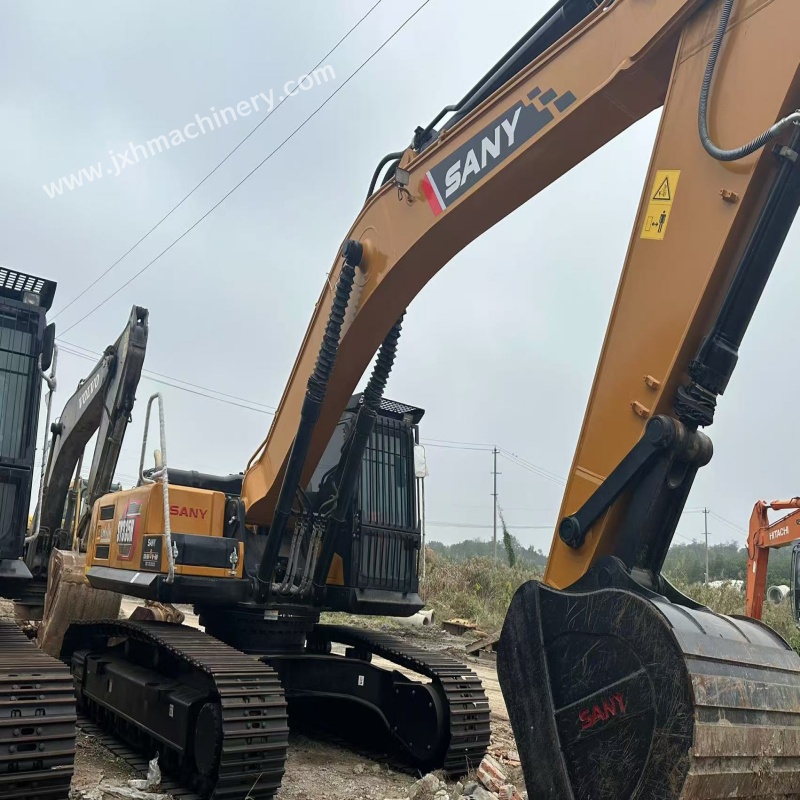

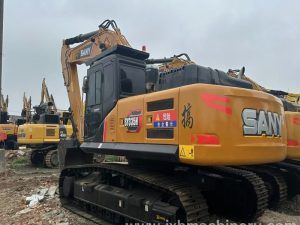

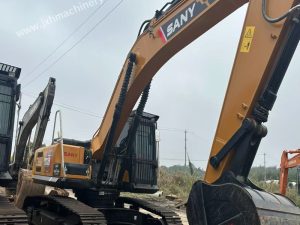

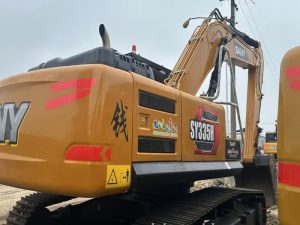

Sany SY335H Crawler Excavator

Overall dimensions

Total length(At the time of transportation)

10667mm

Overall width

3190mm

Total height(At the time of transportation)

3470mm

Upper width

3175mm

Total height(The top of the cab)

3280mm

Standard shoe width

600mm

Gauge

2590mm

Minimum ground clearance

550mm

Tail radius of gyration

3315mm

Ground contact length of track

4134mm

Track length

5040mm

Performance parameters

Weight of complete machine

32500kg

Dou Rong

1.85m³

Rated power

 212/2000kW/rpm

Travel speed(High/Low)

5.4/3.2km/h

Swing speed

9.0 rpm

Gradeability

70%

Ground specific pressure

60.3kPa

Bucket digging force

204kN

Arm digging force

153kN

Scope of work

Maximum Digging Height

10497mm

Maximum unloading height

7359mm

Maximum excavation depth

6815mm

Maximum Digging Distance

10870mm

Maximum height at minimum radius of gyration

8405mm

Minimum radius of gyration

4000mm
