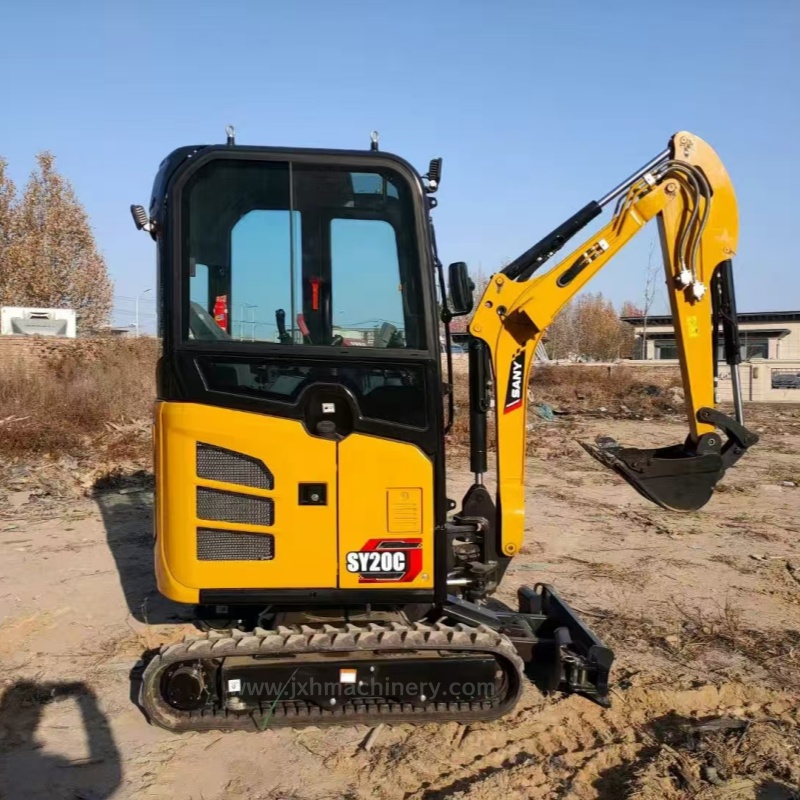

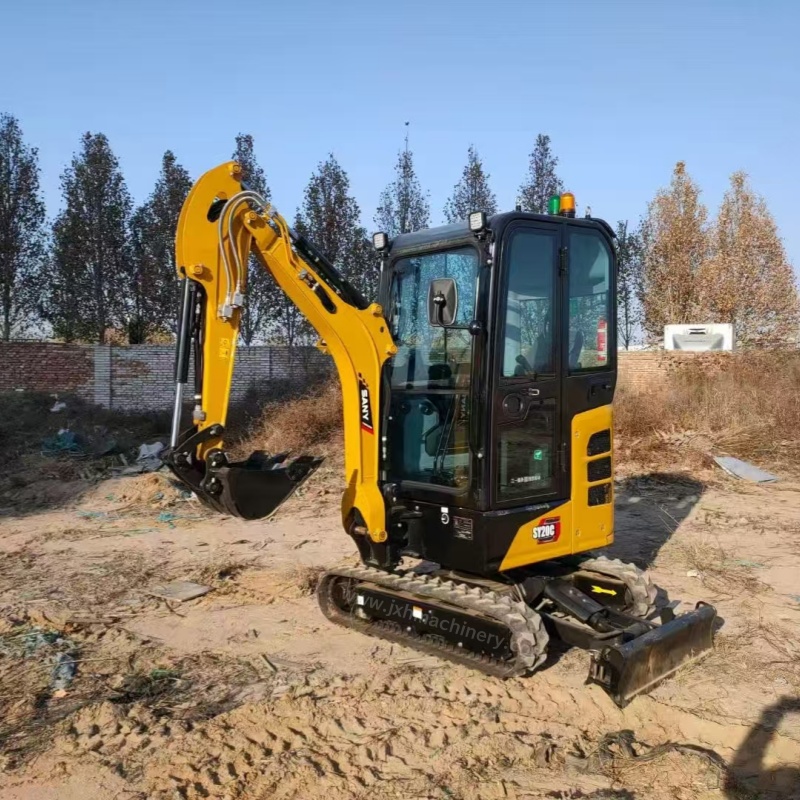

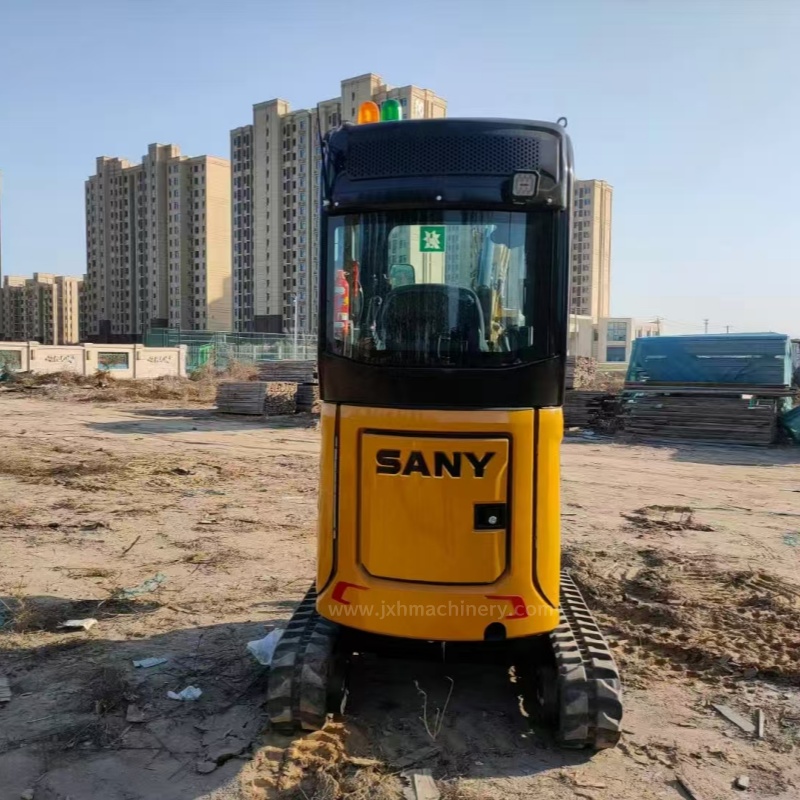

Sany SY20C Crawler Excavator

SKU: SYC20C110701 Category: Used Excavator

Weight	Engine manuf.
1.75 t	Yanmar
Transport length	Engine type
3.58 m	3TNV70
Transport width	Engine power
1.35 m	10.3 kW
Transport height	Dimension lxwxh
2.42 m	528.3×426.7×543.1 mm
Bucket capacity	Displacement
0.04 m³	0.854 l
Track width	Revolutions at max torque
230 mm	1600 rpm
Max. Reach horizontal	Max. torque
3.9 m	52.4 Nm
Dredging depth	No. of cylinders
2.36 m	3
Tear-out force	Cylinder bore x stroke
15.2 kN	70×74 mm
Model series	Emission level
SY	Tier 4 Sany SY20C Crawler Excavator
