$36,000.00

Brand Doosan

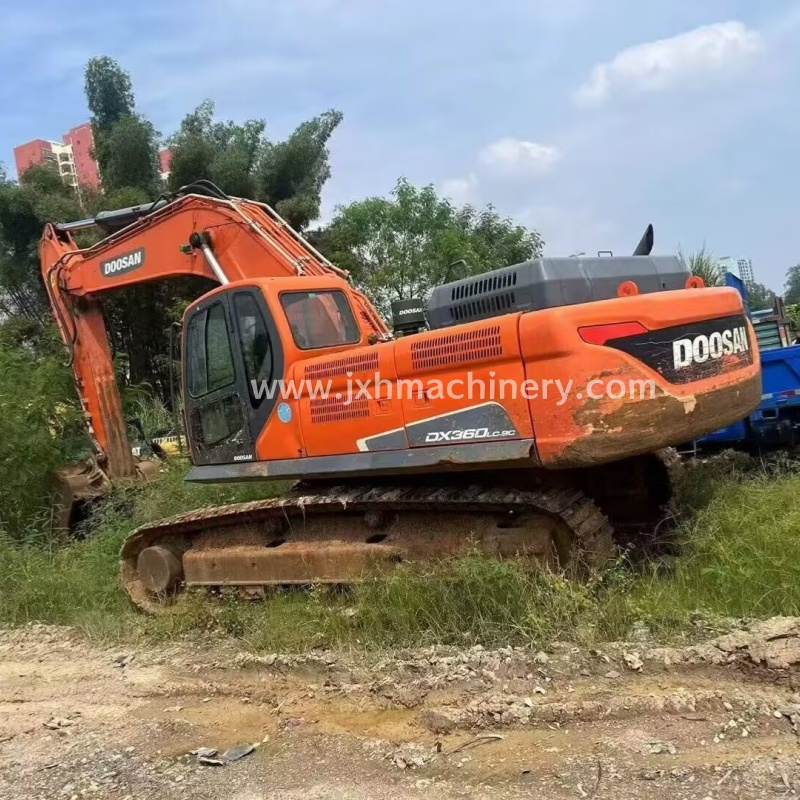

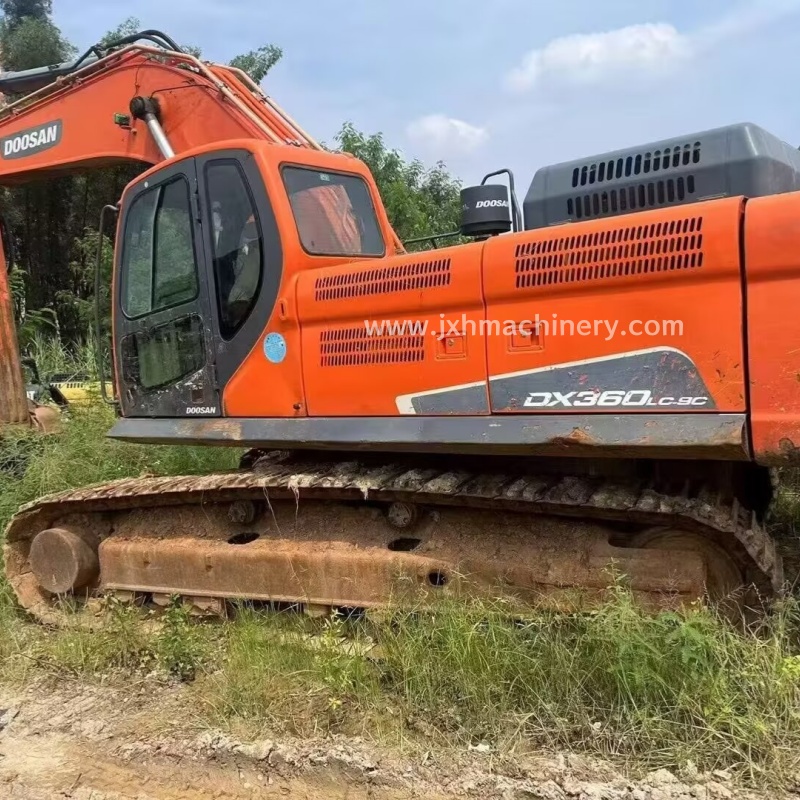

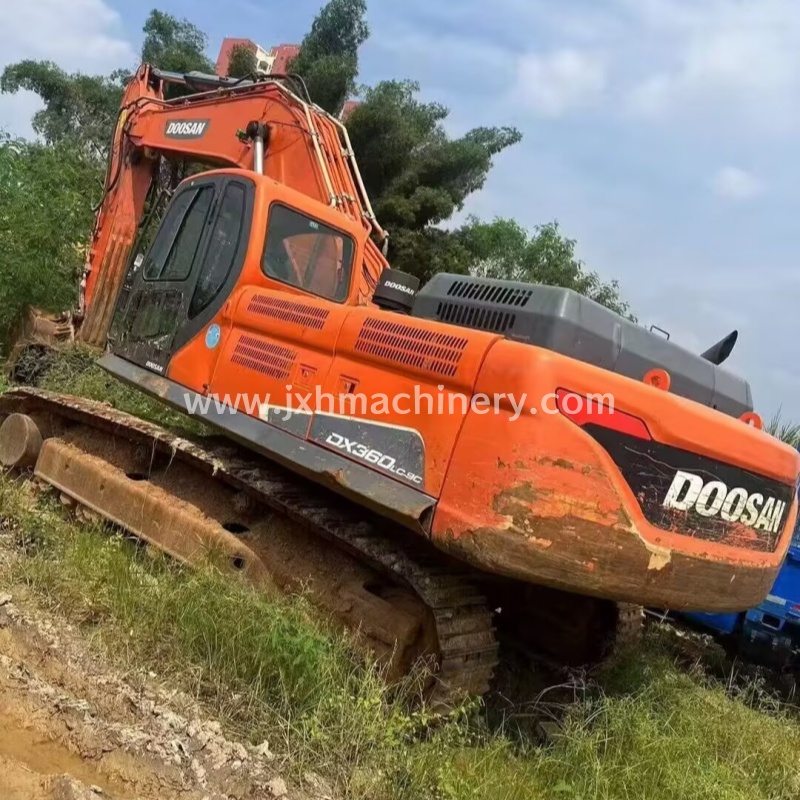

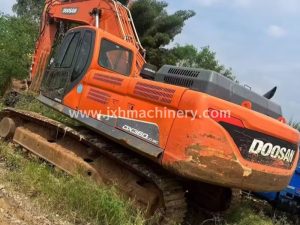

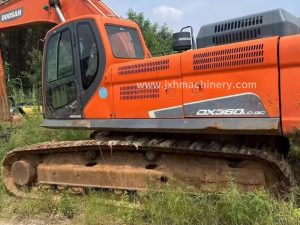

Model Doosan DX360-9C
Year 2019
Working time 4674 hrs
Origin Korea
Engine Power 212KW/ 284HP
Inquiry Now
Category: Brand:

Doosan 360-9C Crawler Excavator Technical Specifications Table

Parameter Category Specification Item Detailed Parameters Notes/Remarks
General Information Model 360-9C
Operating Weight 36,800 kg Standard configuration
Bucket Capacity 1.6 – 2.1 m³ Common configuration approx. 1.8 m³
Engine Model Doosan DL08P
Engine System Type In-line 6-cylinder, Water-cooled, Turbocharged, Electronic Control
Displacement 8.1 L
Rated Power/Speed 212 kW / 1,900 rpm Approx. 284 HP
Emission Standard Meets China National IV
Dimensions Transport Length 11,450 mm Includes bucket and boom
Transport Width 3,490 mm 700mm track shoe width
Transport Height 3,480 mm To top of cab
Track Length 5,620 mm
Ground Clearance 530 mm
Hydraulic System Main Pump Type Variable Displacement Axial Piston Pump
Main System Working Pressure 35.0 MPa
Arm Digging Force 185 kN
Bucket Digging Force 255 kN
Max. Swing Speed 9.0 rpm
