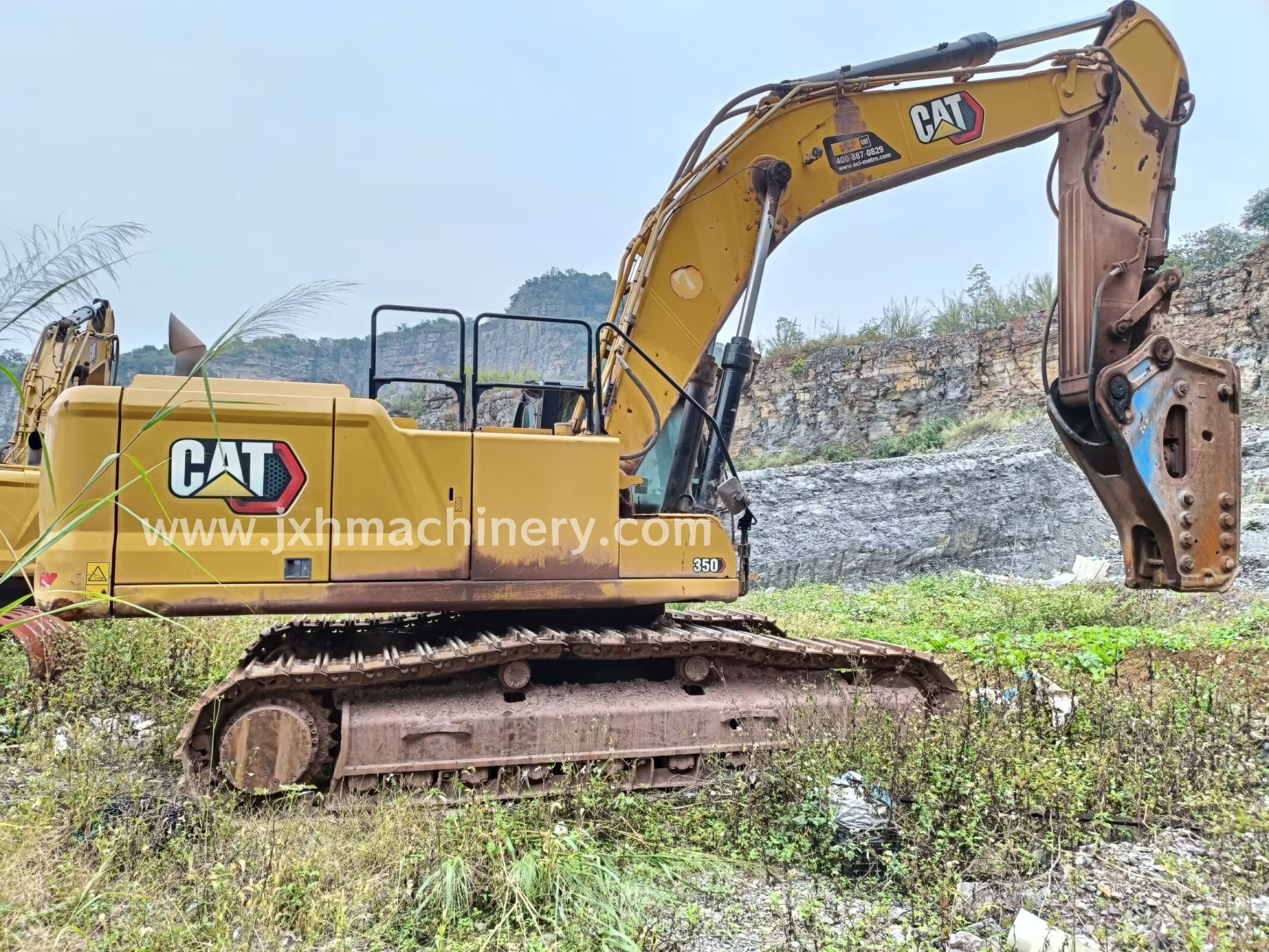

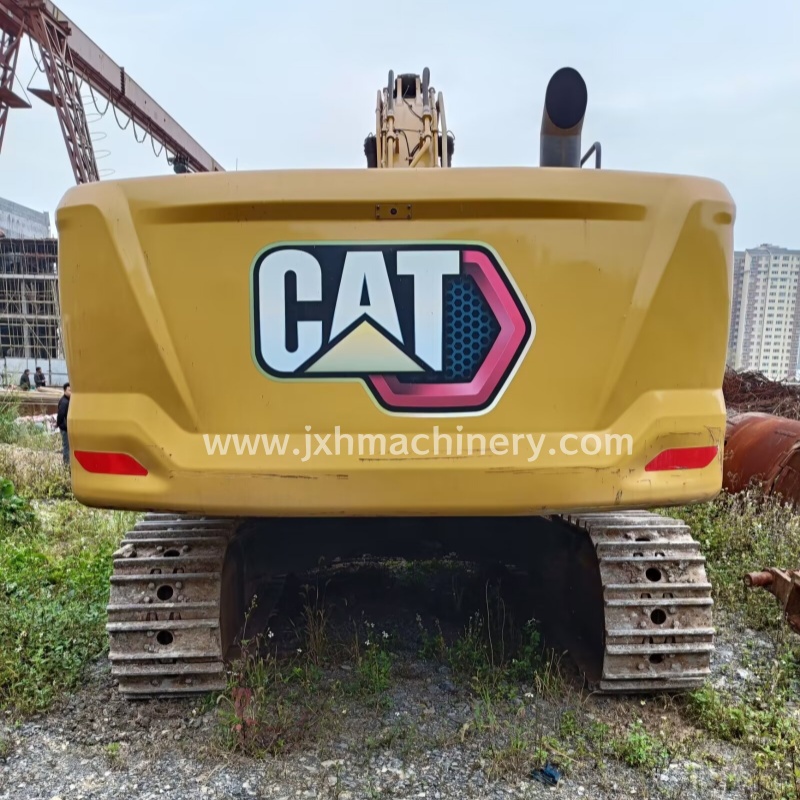

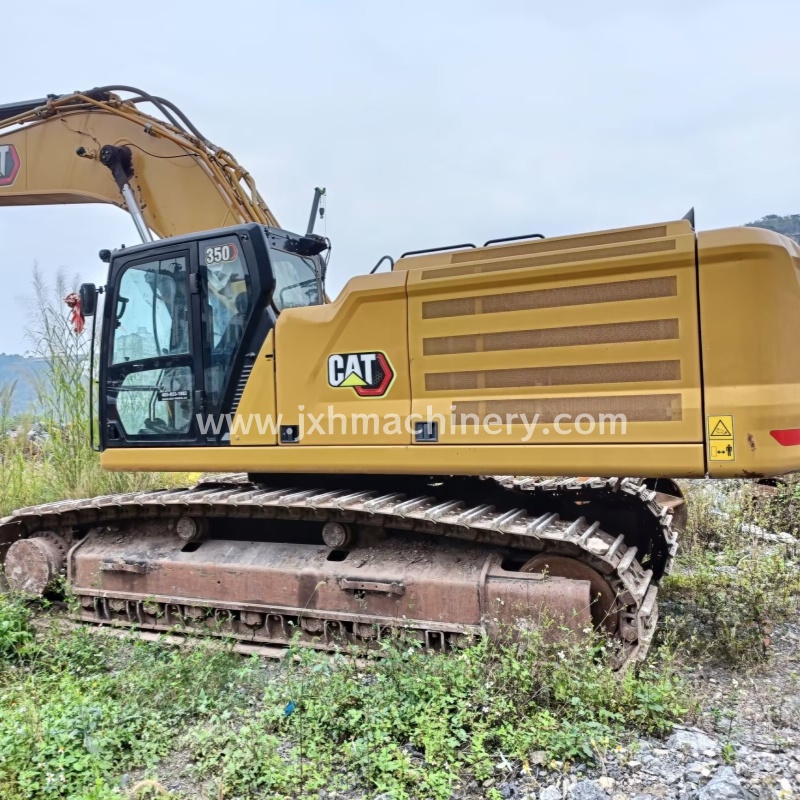

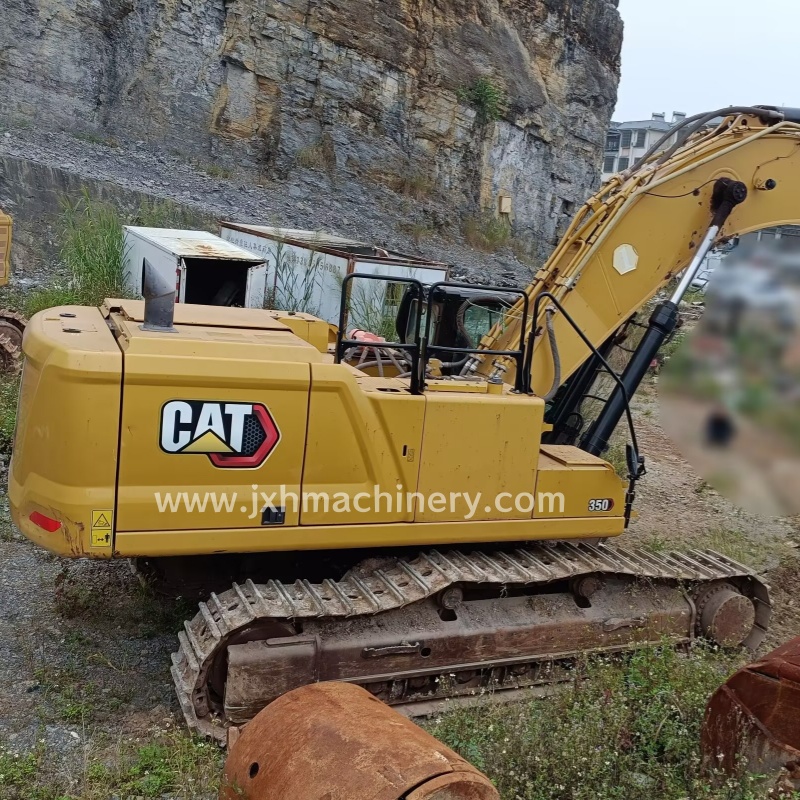

Caterpillar 350 Hydraulic Excavator Technical Specifications Table |
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
| General Information | Model | 350 | |
| Operating Weight | 36,200 kg | Standard configuration |
| Bucket Capacity | 1.6 – 2.1 m³ | Common configuration approx. 1.8 m³ |
| Engine Model | Cat C9.3B | |
| Engine System | Type | In-line 6-cylinder, Water-cooled, Turbocharged | |
| Displacement | 9.3 L | |
| Rated Power/Speed | 242 kW / 1,800 rpm | Approx. 324 HP |
| Emission Standard | Meets China National IV/EU Stage V | SCR technology |
| Dimensions | Transport Length | 10,985 mm | Includes bucket and boom |
| Transport Width | 3,190 mm | 600mm track shoe width |
| Transport Height | 3,505 mm | To top of cab |
| Hydraulic System | Main Pump Type | Variable Displacement Axial Piston Pump | |
| Main System Working Pressure | 35.0 MPa | |
| Arm Digging Force | 158 kN | |
| Bucket Digging Force | 216 kN | |
| Max. Swing Speed | 9.5 rpm | |
