$34,700.00

Brand Caterpillar(Cat)

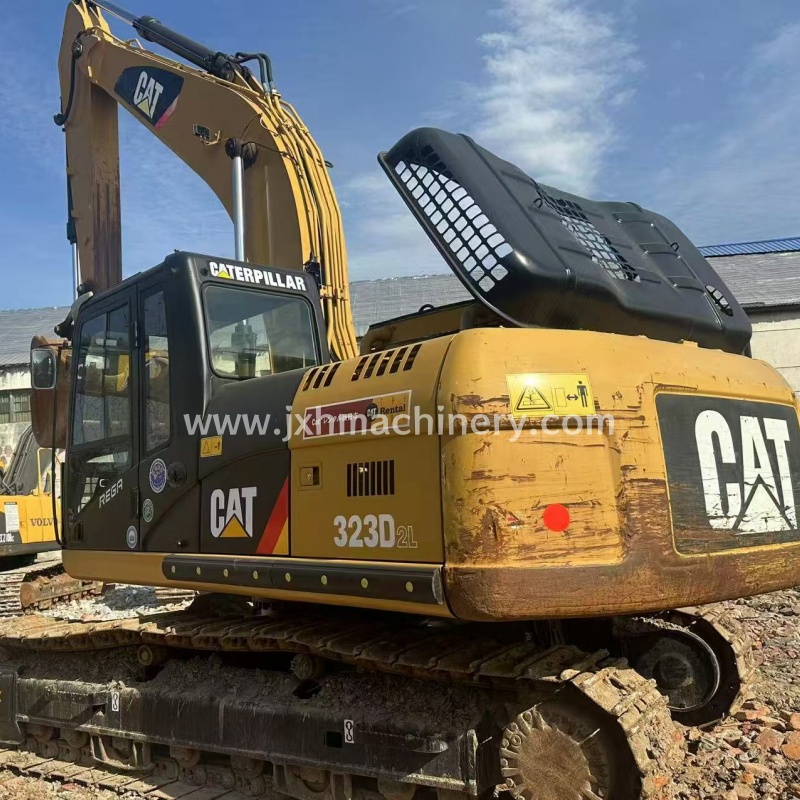

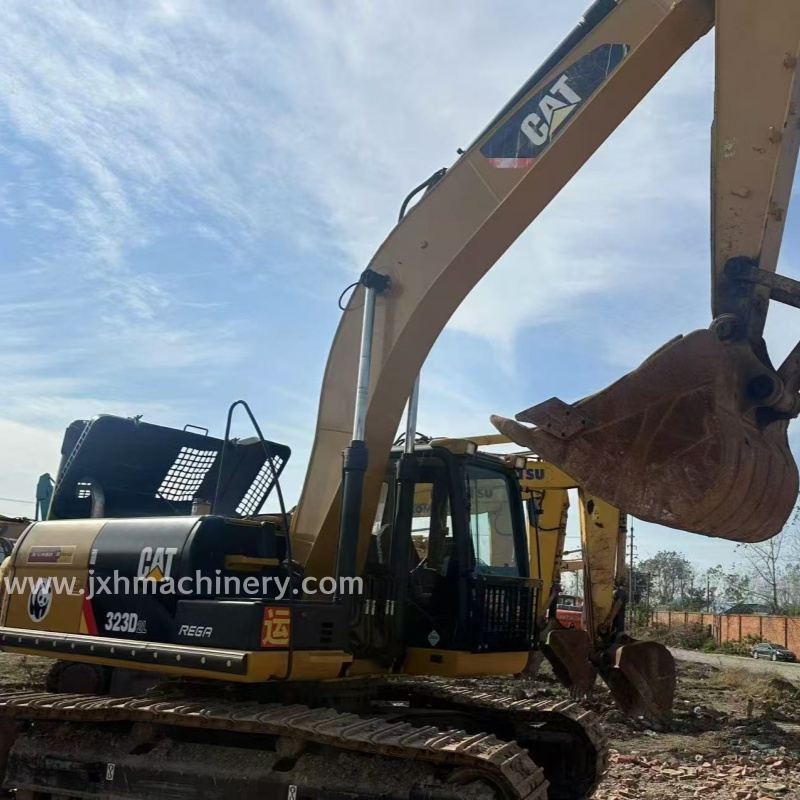

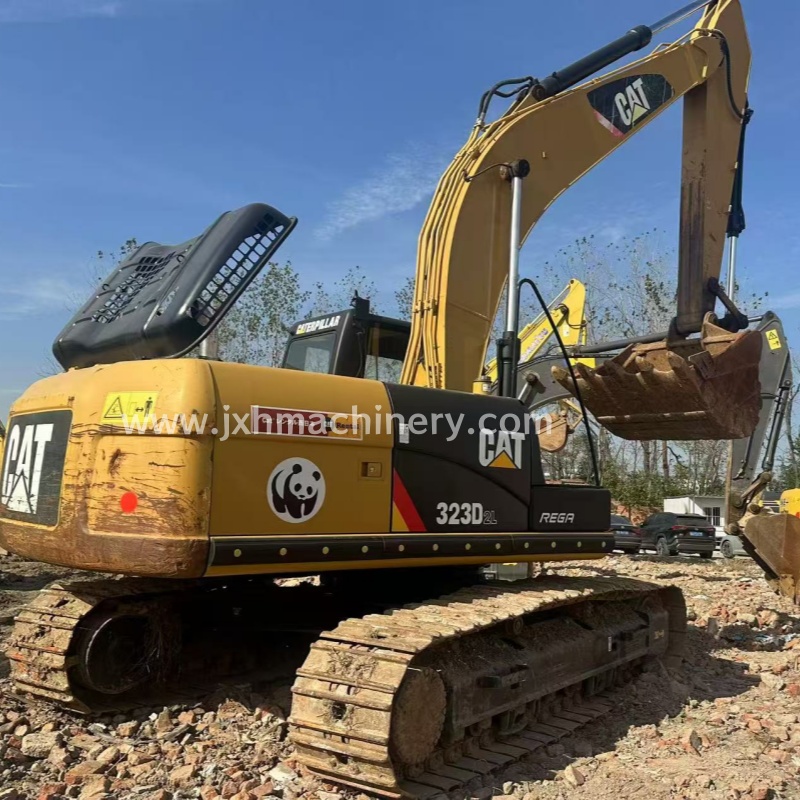

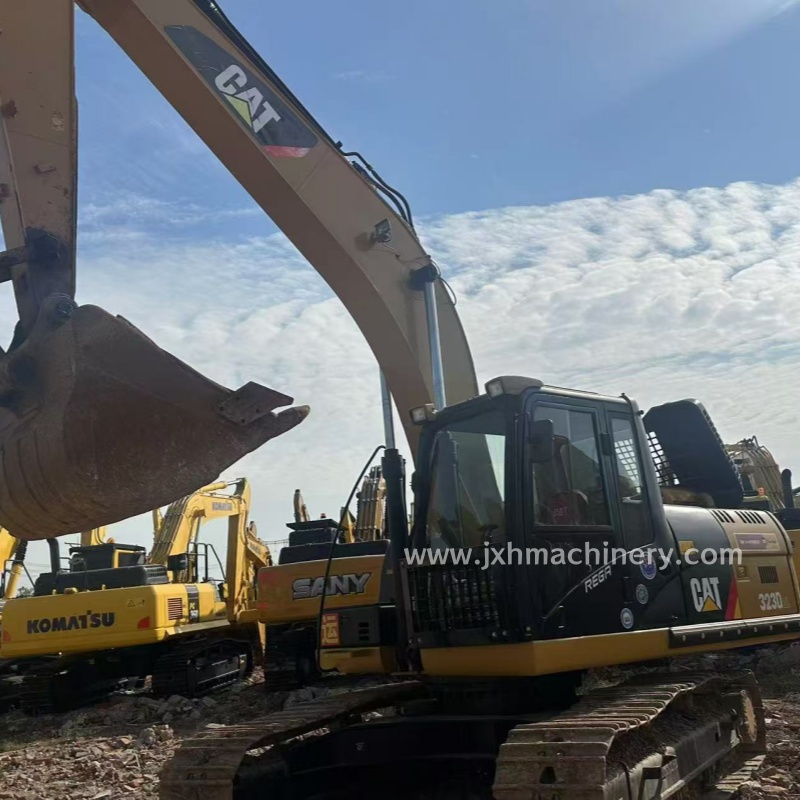

Model Caterpillar 323D2L
Year 2023
Working time 1798 hrs
Origin Japan
Engine Power 125kW / 168 HP
Inquiry Now
SKU: CAT323D2L103001 Category: Tags: , ,
Caterpillar 323D2 L Hydraulic Excavator Technical Specifications Table
Parameter Category Specification Item Detailed Parameters Notes/Remarks
General Information Model 323D2 L
Bucket Capacity 1.10 – 1.40 m³ Common configuration approx. 1.25 m³
Engine Model Cat C6.6 ACERT
Engine System Type In-line 6-cylinder, Water-cooled, Turbocharged
Displacement 6.6 L
Rated Power/Speed 125 kW / 1,800 rpm Approx. 168 HP
Emission Standard Meets China National III/EU Stage IIIA
Hydraulic System Main Pump Type Variable Displacement Axial Piston Pump
Main System Working Pressure 34.8 MPa
Arm Digging Force 108 kN
Bucket Digging Force 149 kN
Max. Swing Speed 10.5 rpm
Dimensions Transport Length 10,090 mm Includes bucket and boom
Transport Width 3,190 mm 600mm track shoe width
Transport Height 3,200 mm To top of cab
