| Brand | Case |
| Model | Case 175B |
| Year | 2020 |
| Working time | 853 |
| Origin | Japan |
| Engine Power | 46KW/ 62HP |

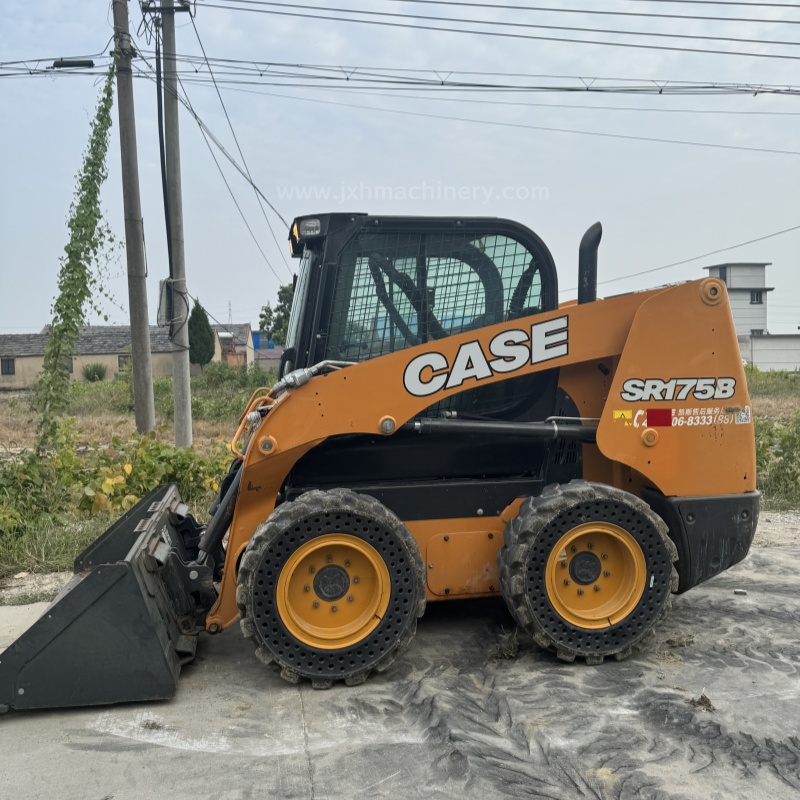

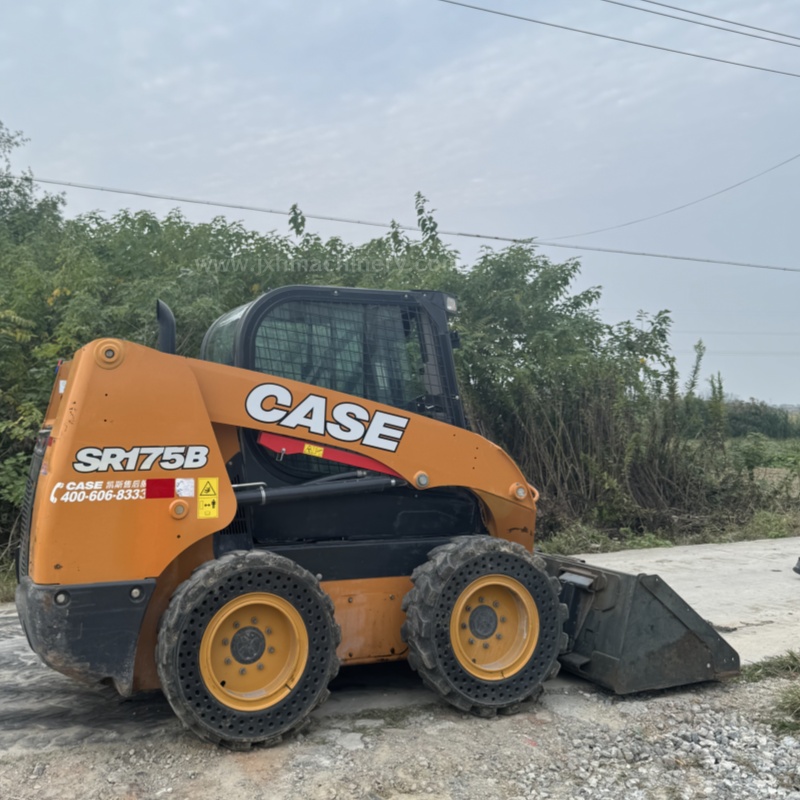

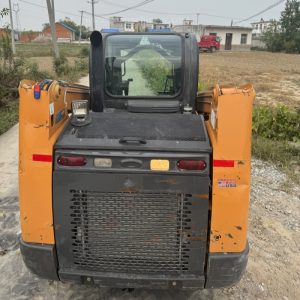

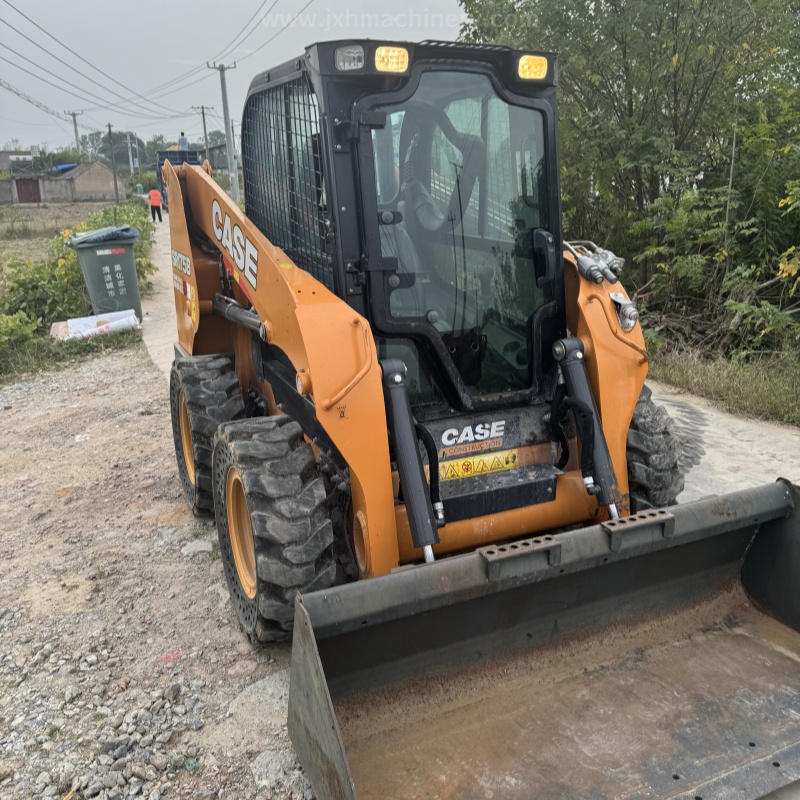

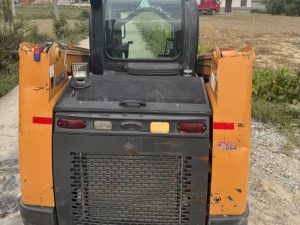

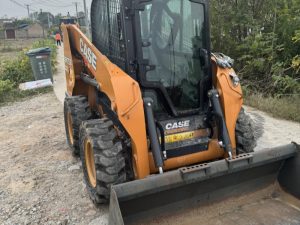

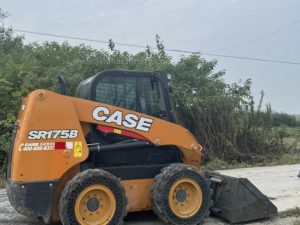

Case 175B Skid Steer Loader Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | 175B | |
| Operating Weight | 1,950 kg | Standard configuration | |
| Rated Load Capacity | 590 kg | ||
| Tip Load | 1,180 kg | ||
| Engine Model | Fiat F4L2011 | ||
| Engine System | Type | In-line 4-cylinder, Water-cooled, Turbocharged | |
| Displacement | 3.3 L | ||
| Rated Power | 46 kW | Approx. 62 HP | |
| Emission Standard | Meets China National III | ||
| Dimensions | Overall Length | 3,020 mm | Without attachment |
| Overall Width | 1,650 mm | ||
| Overall Height | 1,980 mm | To top of ROPS | |
| Wheelbase | 1,120 mm | ||
| Ground Clearance | 180 mm | ||
| Hydraulic System | Main Pump Type | Gear Pump | |
| Working Pressure | 20.7 MPa | ||
| Flow Rate | 68 L/min | ||
| Auxiliary Hydraulic Flow | 45 L/min | Optional | |
| Lift Mechanism | |||
| Lift Height | 2,690 mm | To pivot pin | |
| Dump Height | 1,980 mm | ||
| Breakout Force | 1,610 kg | ||
| Lift Capacity | 816 kg | To full height |
