| Brand | Bobcat |
| Model | Bobcat S160 |
| Year | 2019 |
| Working time | 1932 |
| Origin | Korea |
| Engine Power | 18.6KW/ 25HP |

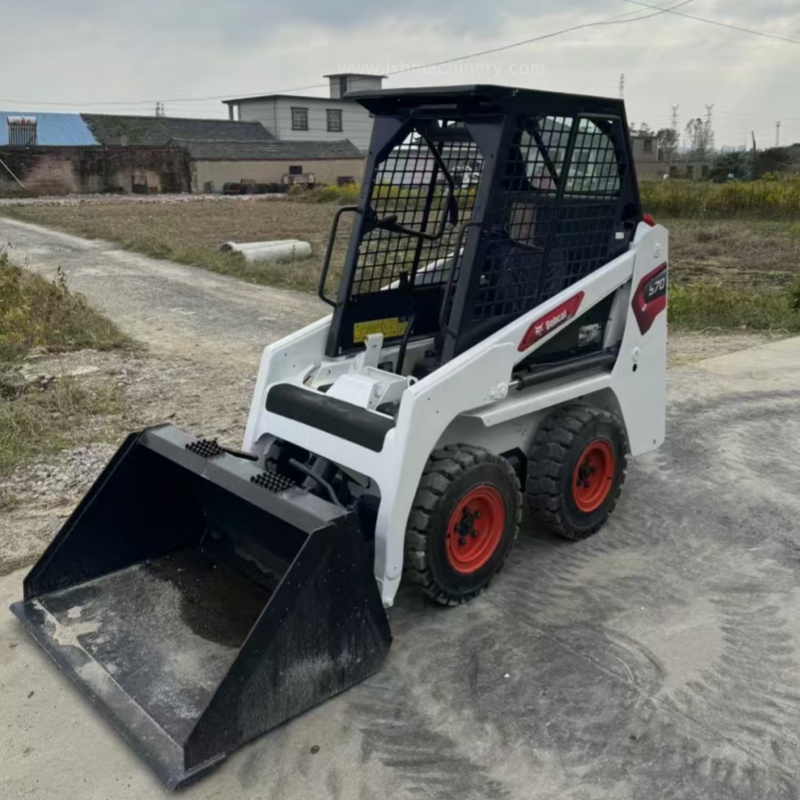

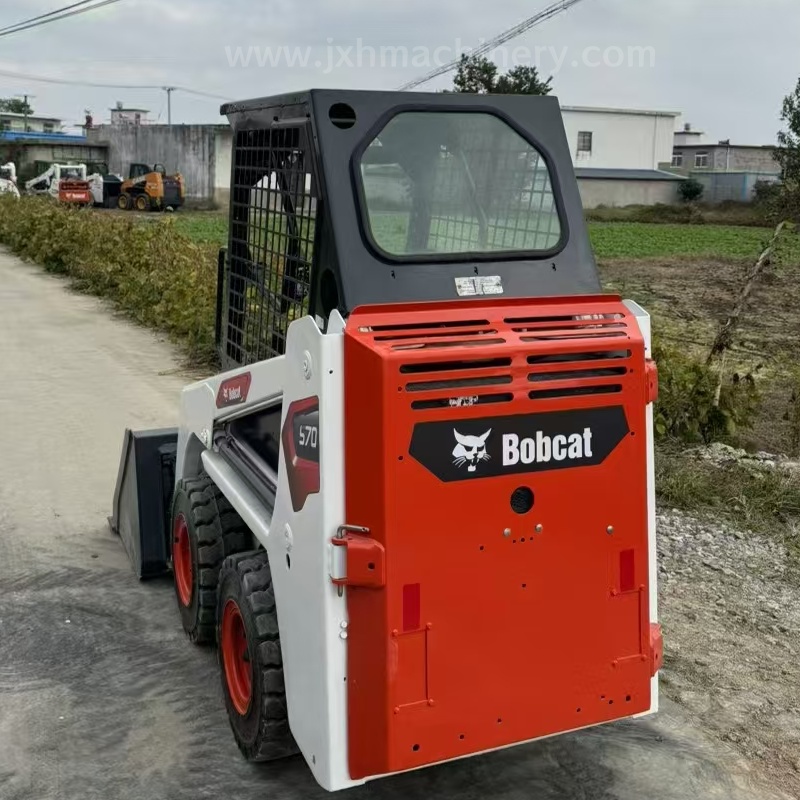

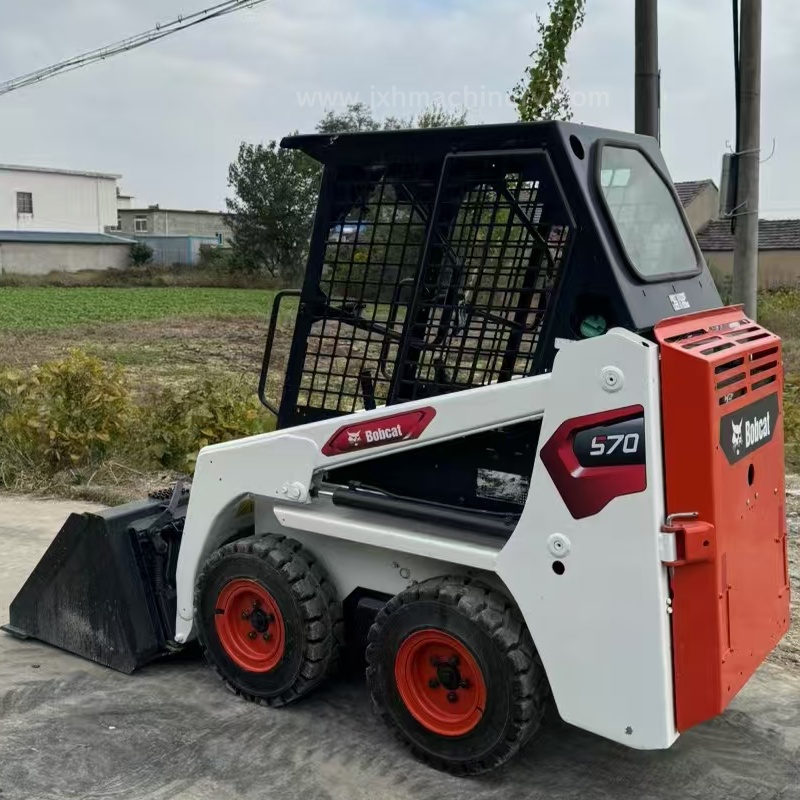

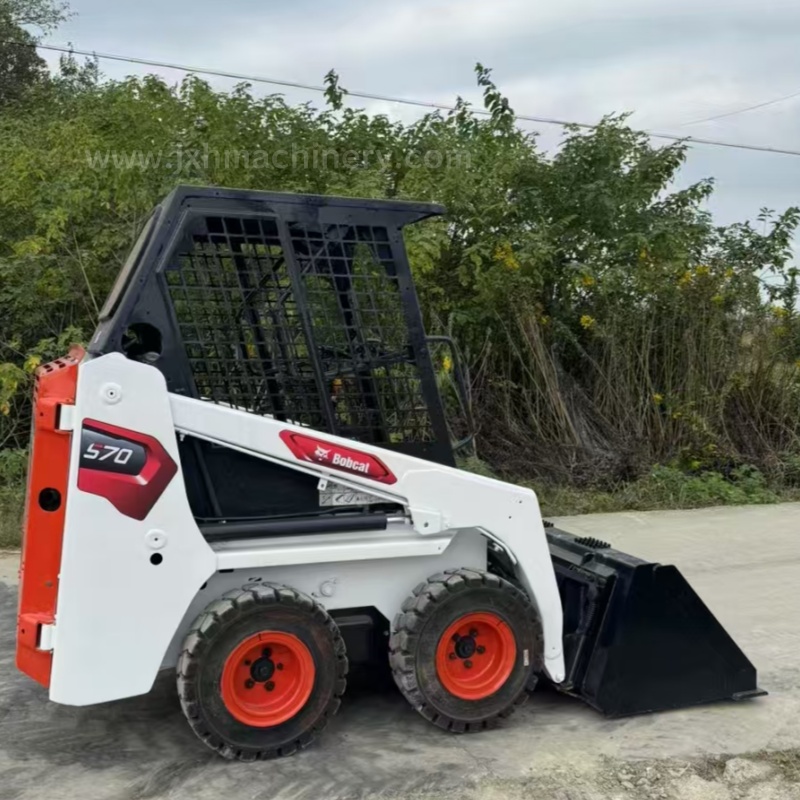

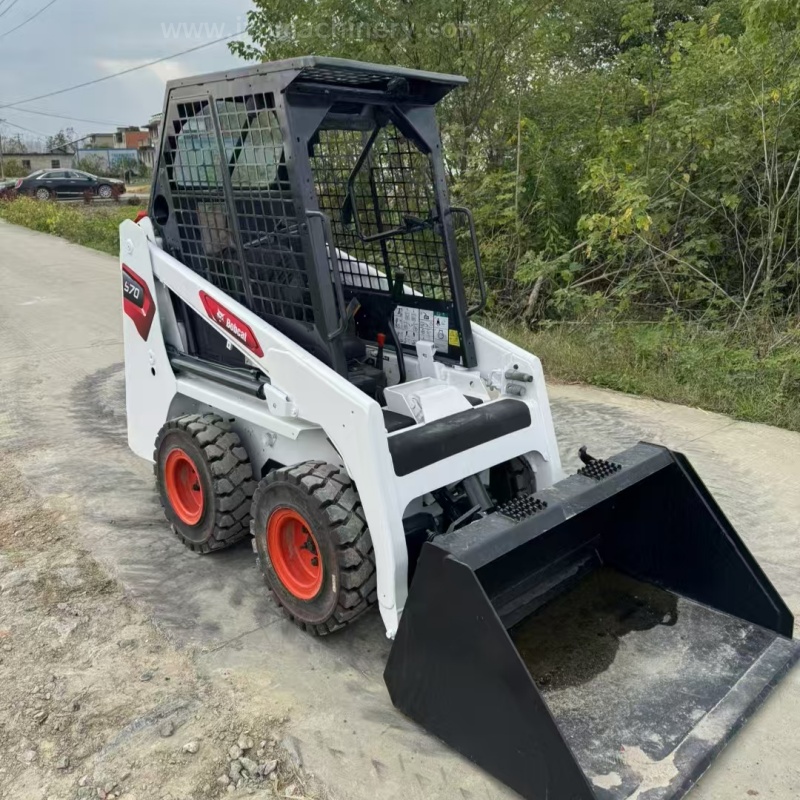

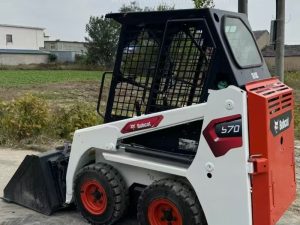

Bobcat S70 Skid Steer Loader Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | S70 | |
| Operating Weight | 1,270 kg | Standard configuration | |
| Rated Load Capacity | 318 kg | ||
| Tip Load | 635 kg | ||
| Engine Model | Kubota D1105 | ||
| Engine System | Type | In-line 3-cylinder, Water-cooled | |
| Displacement | 1.123 L | ||
| Rated Power | 18.6 kW | Approx. 25 HP | |
| Emission Standard | Meets China National IV | ||
| Dimensions | Overall Length | 2,540 mm | Without attachment |
| Overall Width | 1,220 mm | ||
| Overall Height | 1,930 mm | To top of ROPS | |
| Wheelbase | 940 mm | ||
| Ground Clearance | 150 mm | ||
| Hydraulic System | Main Pump Type | Gear Pump | |
| Working Pressure | 17.2 MPa | ||
| Flow Rate | 34 L/min | ||
| Auxiliary Hydraulic Flow | 22.7 L/min | Optional | |
| Lift Mechanism | |||
| Lift Height | 2,210 mm | To pivot pin | |
| Dump Height | 1,600 mm | ||
| Breakout Force | 907 kg | ||
| Lift Capacity | 454 kg | To full height |
