| Brand | Bobcat |
| Model | Bobcat S300 |
| Year | 2018 |
| Working time | 1254 |
| Origin | Korea |
| Engine Power | 74KW/ 99HP |

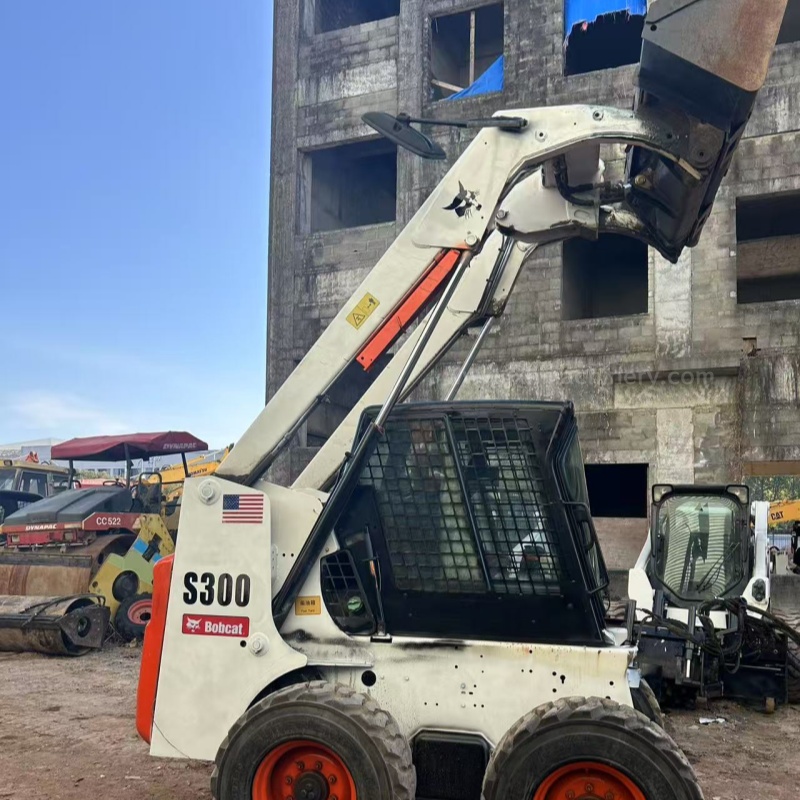

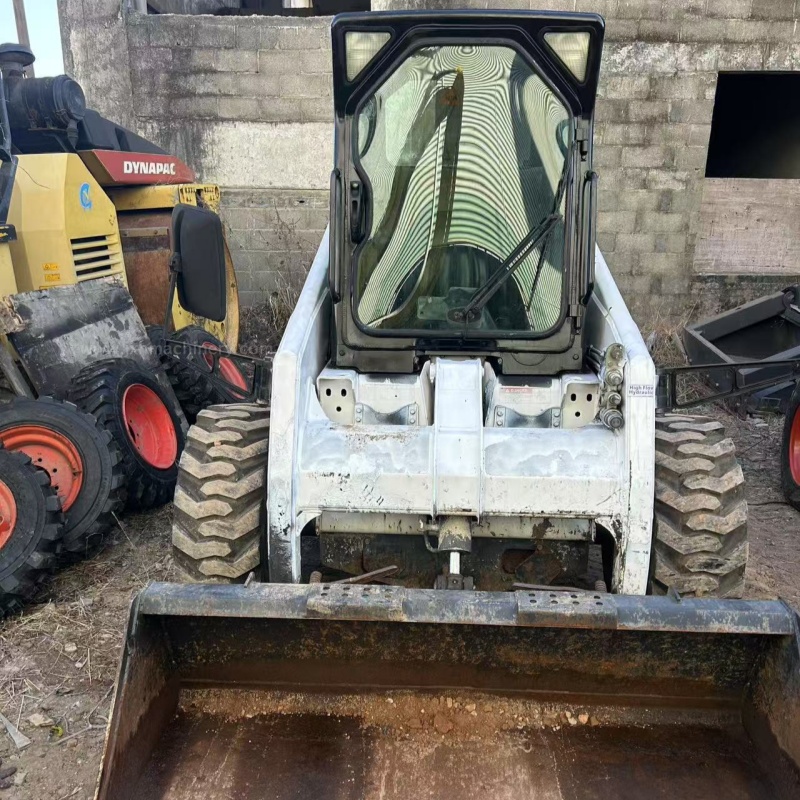

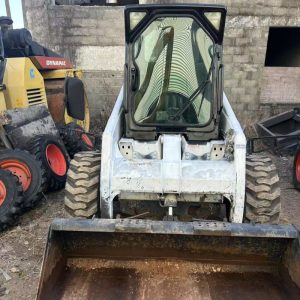

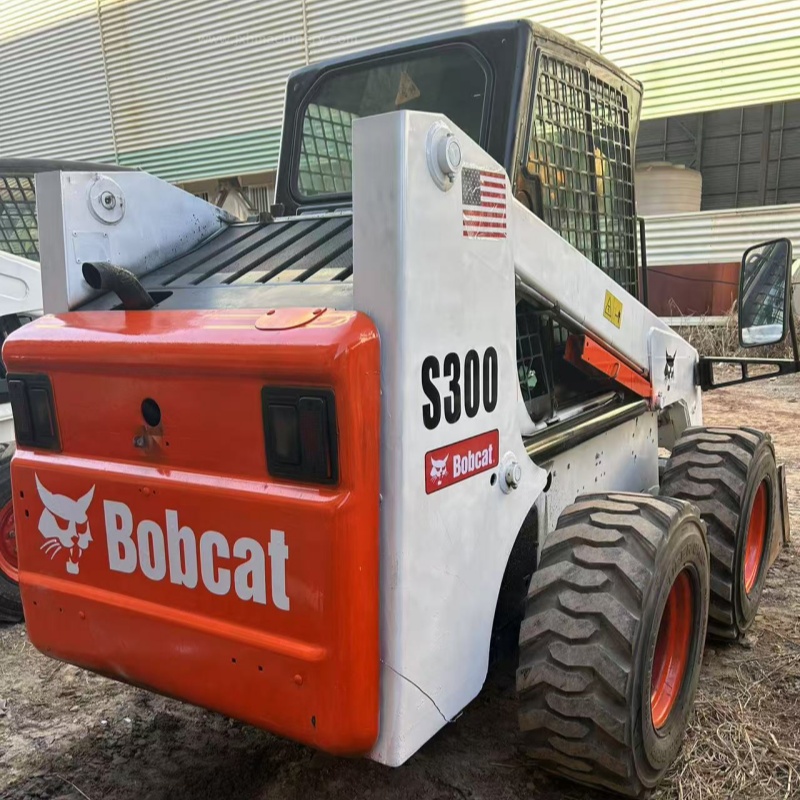

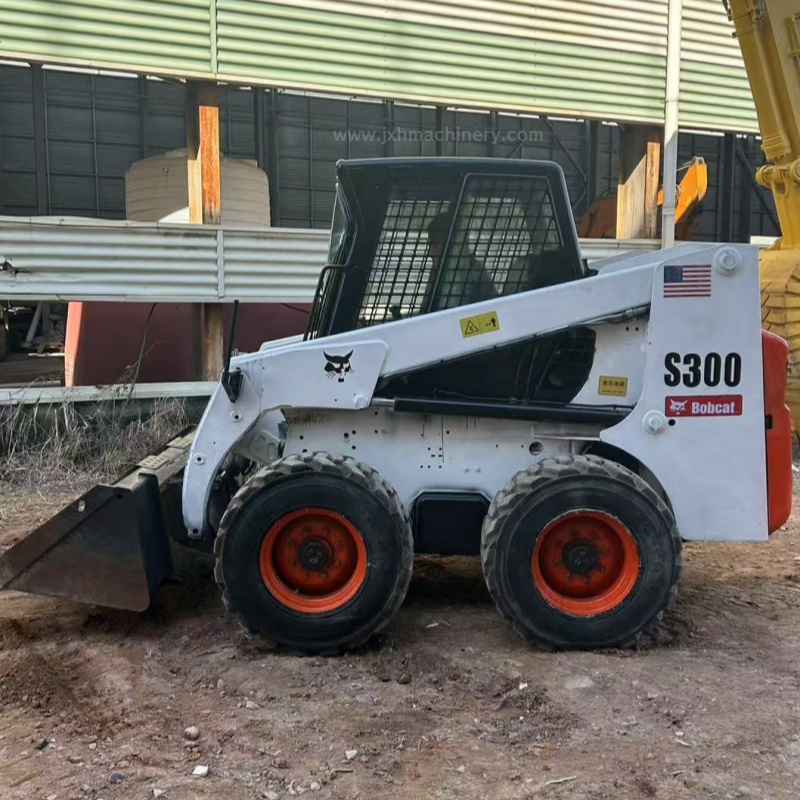

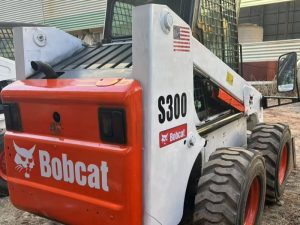

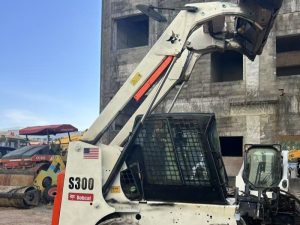

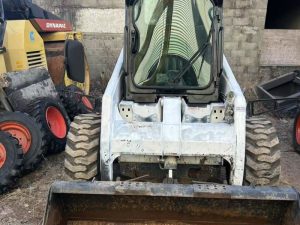

Bobcat S300 Skid Steer Loader Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | S300 | |
| Operating Weight | 3,175 kg | Standard configuration | |
| Rated Load Capacity | 1,360 kg | ||
| Tip Load | 2,720 kg | ||
| Engine Model | Kubota V3800 | ||
| Engine System | Type | In-line 4-cylinder, Water-cooled, Turbocharged | |
| Displacement | 3.8 L | ||
| Rated Power | 74 kW | Approx. 99 HP | |
| Emission Standard | Meets China National IV | ||
| Dimensions | Overall Length | 3,810 mm | Without attachment |
| Overall Width | 2,130 mm | ||
| Overall Height | 2,160 mm | To top of ROPS | |
| Wheelbase | 1,370 mm | ||
| Ground Clearance | 230 mm | ||
| Hydraulic System | Main Pump Type | Axial Piston Pump | |
| Working Pressure | 24.1 MPa | ||
| Flow Rate | 113 L/min | ||
| Auxiliary Hydraulic Flow | 76 L/min | Optional | |
| Lift Mechanism | |||
| Lift Height | 3,300 mm | To pivot pin | |
| Dump Height | 2,480 mm | ||
| Breakout Force | 3,175 kg | ||
| Lift Capacity | 1,610 kg | To full height |
