| Brand | Bobcat |
| Model | Bobcat 220 |
| Year | 2018 |
| Working time | 1379 |
| Origin | Korea |
| Engine Power | 67KW/ 90HP |

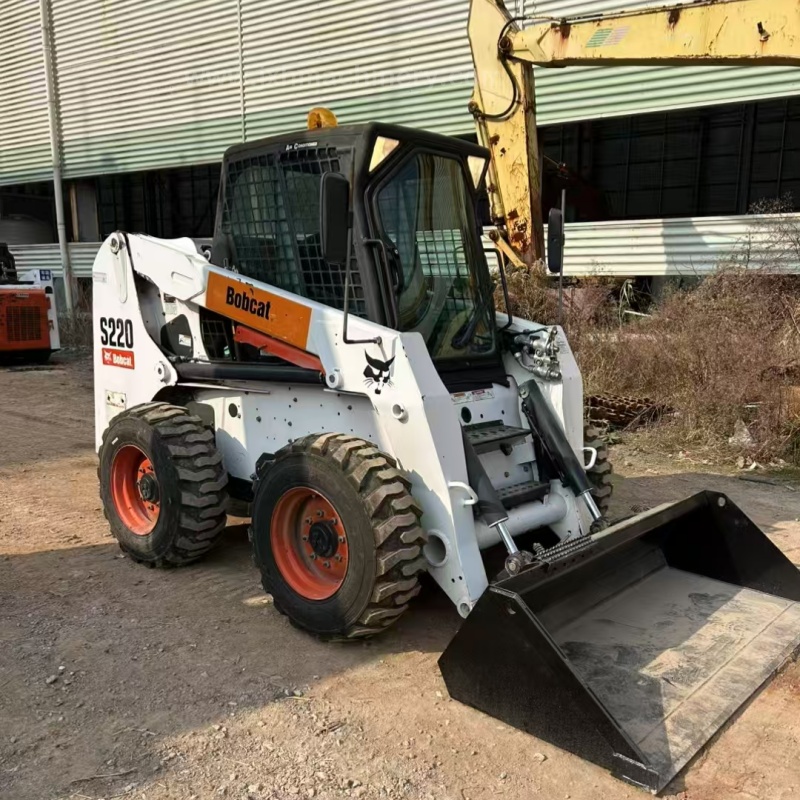

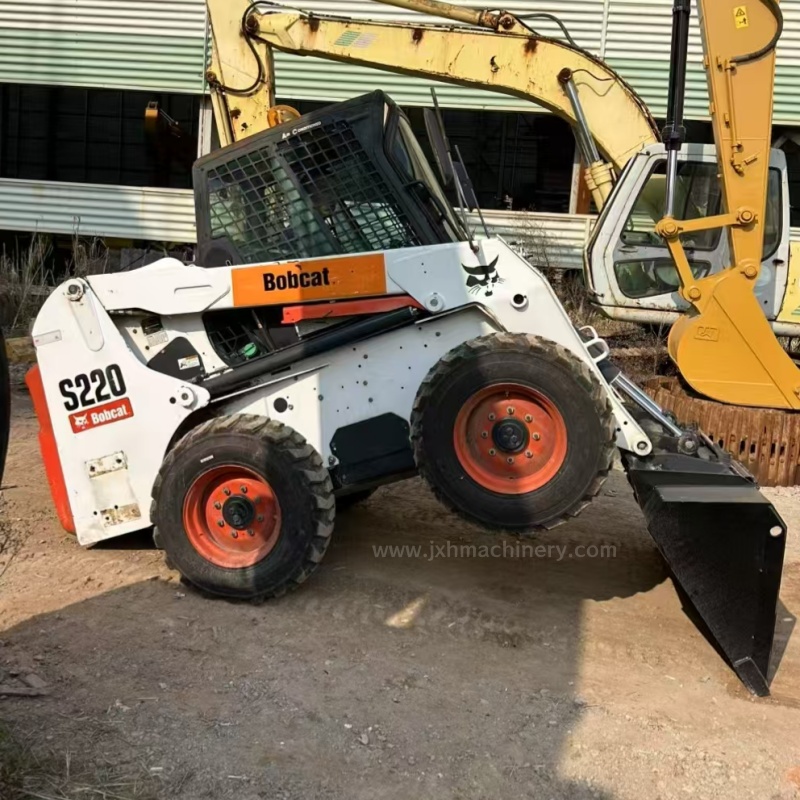

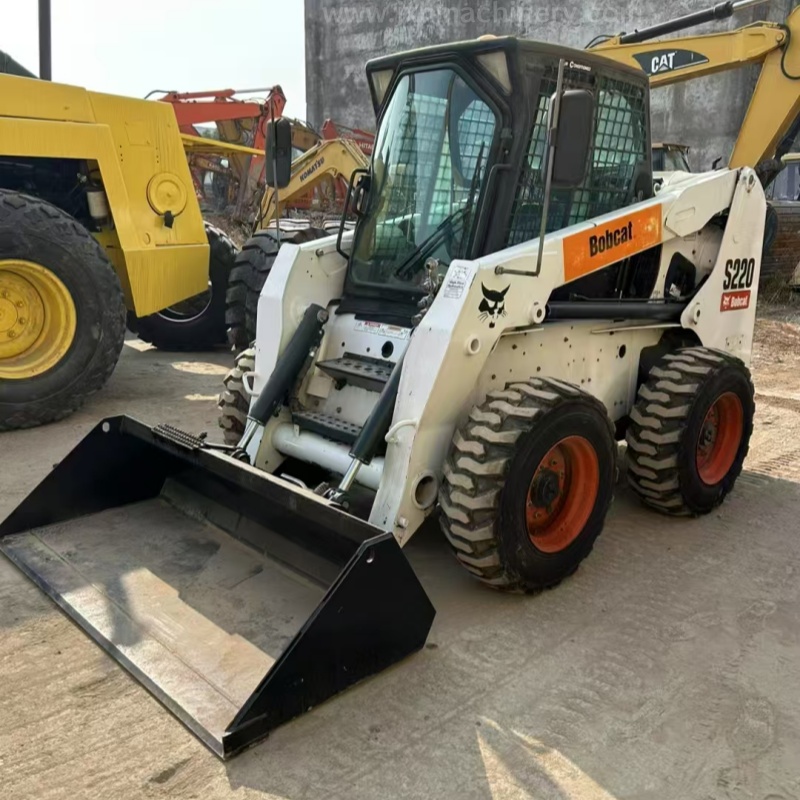

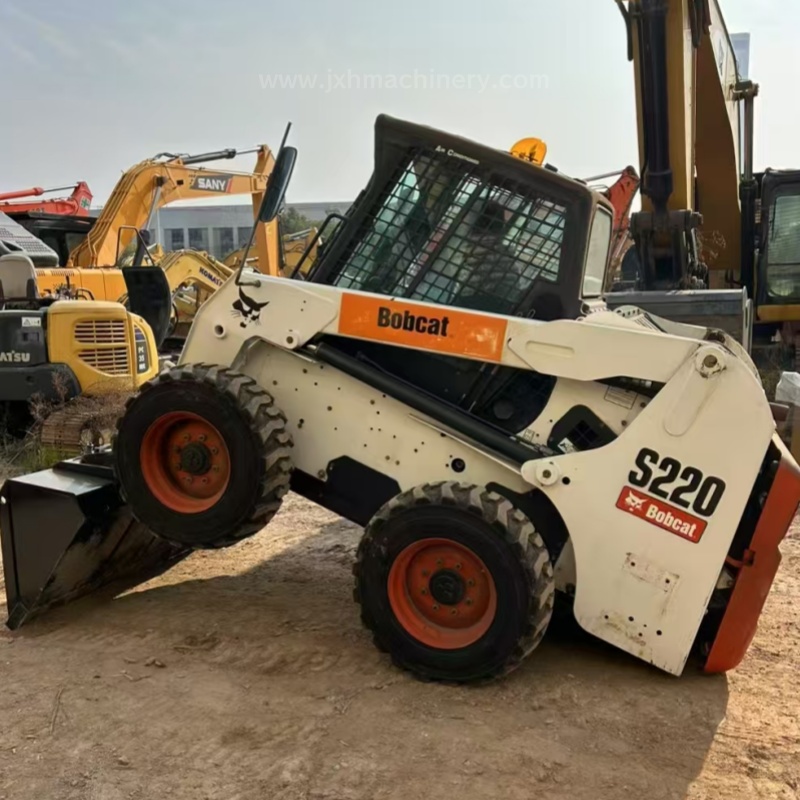

Bobcat S220 Skid Steer Loader Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | S220 | |
| Operating Weight | 2,630 kg | Standard configuration | |
| Rated Load Capacity | 975 kg | ||
| Tip Load | 1,950 kg | ||
| Engine Model | Kubota V3307 | ||
| Engine System | Type | In-line 4-cylinder, Water-cooled, Turbocharged | |
| Displacement | 3.3 L | ||
| Rated Power | 67 kW | Approx. 90 HP | |
| Emission Standard | Meets China National IV | ||
| Dimensions | Overall Length | 3,530 mm | Without attachment |
| Overall Width | 1,880 mm | ||
| Overall Height | 2,030 mm | To top of ROPS | |
| Wheelbase | 1,270 mm | ||
| Ground Clearance | 210 mm | ||
| Hydraulic System | Main Pump Type | Axial Piston Pump | |
| Working Pressure | 24.1 MPa | ||
| Flow Rate | 95 L/min | ||
| Auxiliary Hydraulic Flow | 57 L/min | Optional | |
| Lift Mechanism | |||
| Lift Height | 3,020 mm | To pivot pin | |
| Dump Height | 2,260 mm | ||
| Breakout Force | 2,540 kg | ||
| Lift Capacity | 1,134 kg | To full height |
